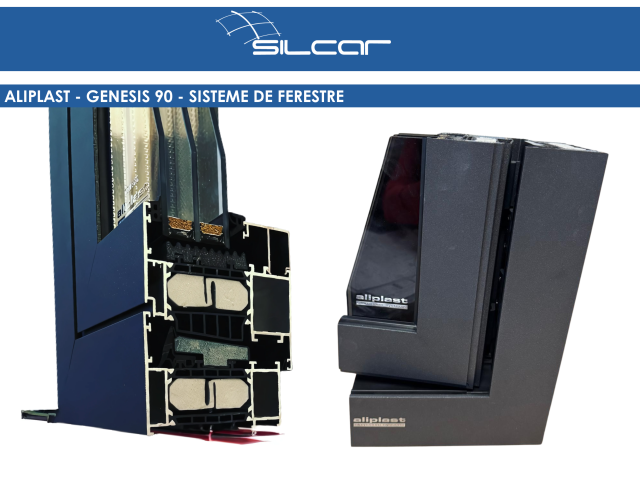

✔ Modern aluminum system designed for the construction of windows with enhanced thermal insulation, meeting the requirements of the Passive House Institute certificate for structures with thermal insulation Uw < 0.8 W/m2·K.
✔ The system is designed to meet the highest thermal requirements for facades and glazing installations in Europe and worldwide. It meets the requirements for components used in passive buildings. The Genesis 90 system is certified by the Passive House Institute of Darmstadt (PHI).
✔ Three thermal variants are available:
- standard (without insulation);
- variant “i”, insulation around the glass;
- “i+” version with insulation inside the profiles and around the glass.
✔ The central gasket is available in 2 versions: standard and equipped with thermal insert (made of heat-resistant XPET material).
✔ The maximum height of the sashes is 3 m, with a maximum sash weight of 180 kg.
✔ Possibility of equipping sashes with PVC hardware (9 mm axis).
✔ Multiple construction possibilities: profiles available with variable angles, 90 degrees, glass corners, etc.
✔ Possibility to install a glass package with a maximum thickness of 74 mm. View details
